Part 2

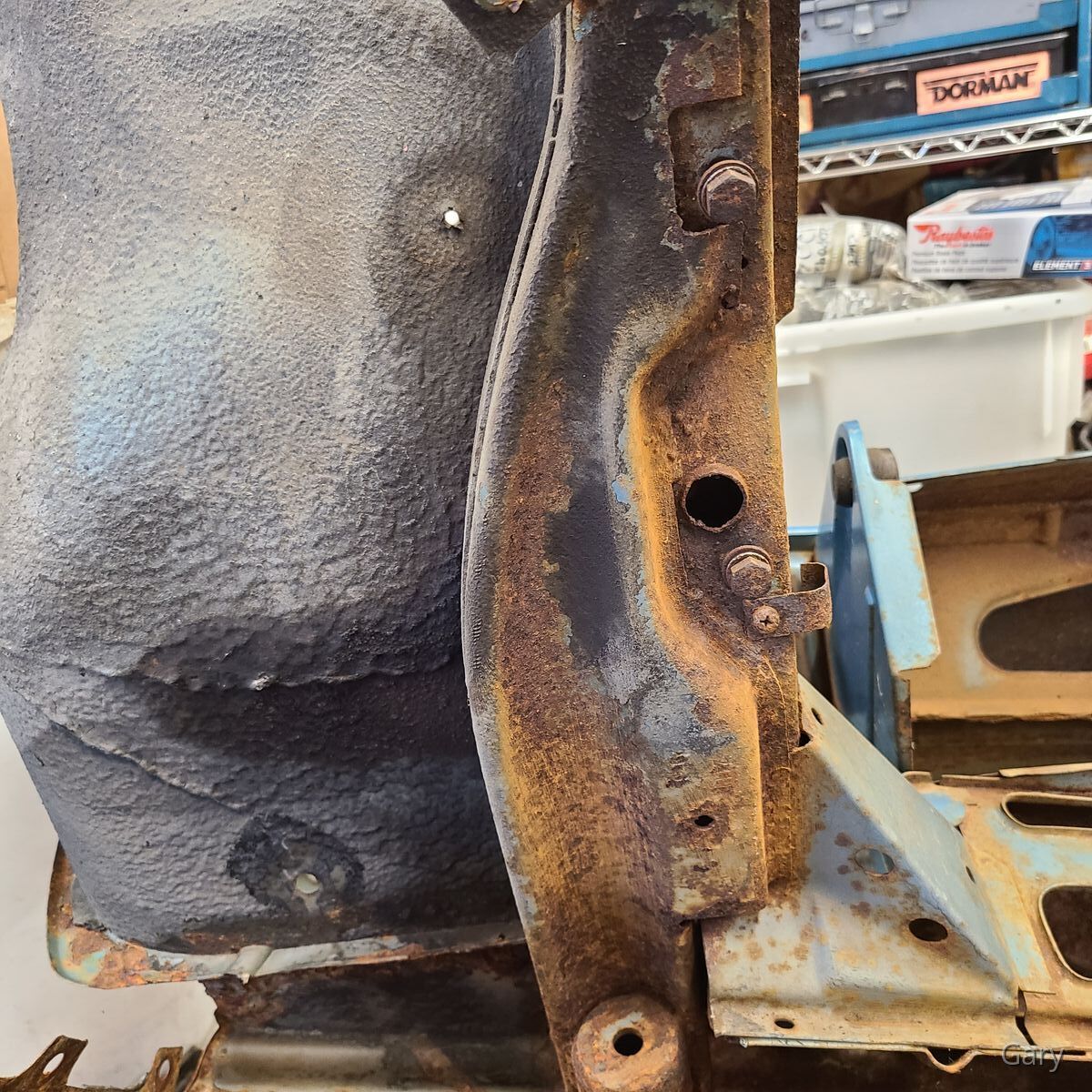

One of the issues I ran into was the donor Manta nose was from a 1974 which has large aluminum bumpers. The tubes for the bumper mounts run parallel to and blend into the frame rails further back. This meant the frame rail would need to be cut further back than if a small bumper nose was used.

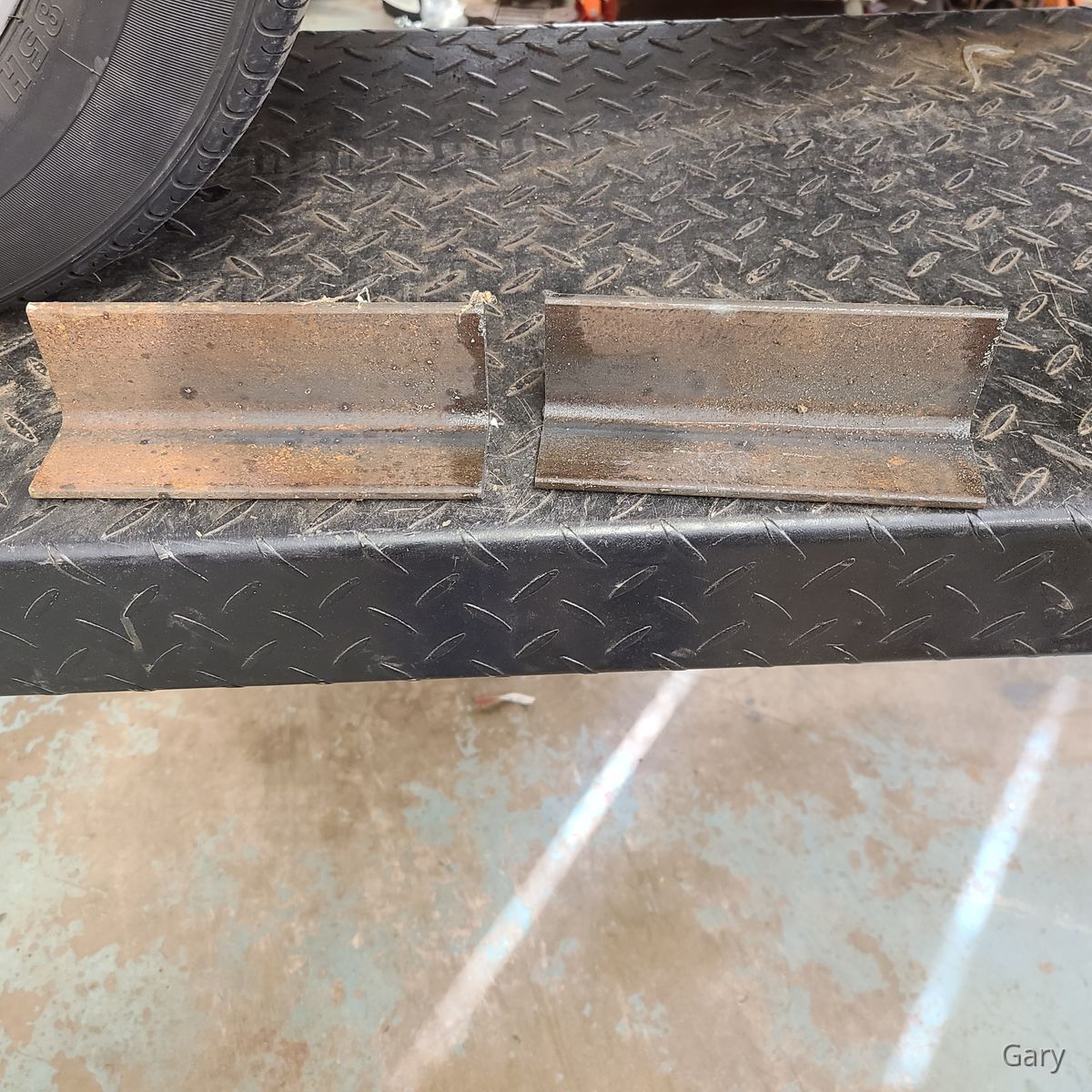

The main rail opening is just about the size of 2 1/2" x 2" angle iron. I ground down the edges and now have sleeves to insert into the opening which will support and align the nose during fitment.

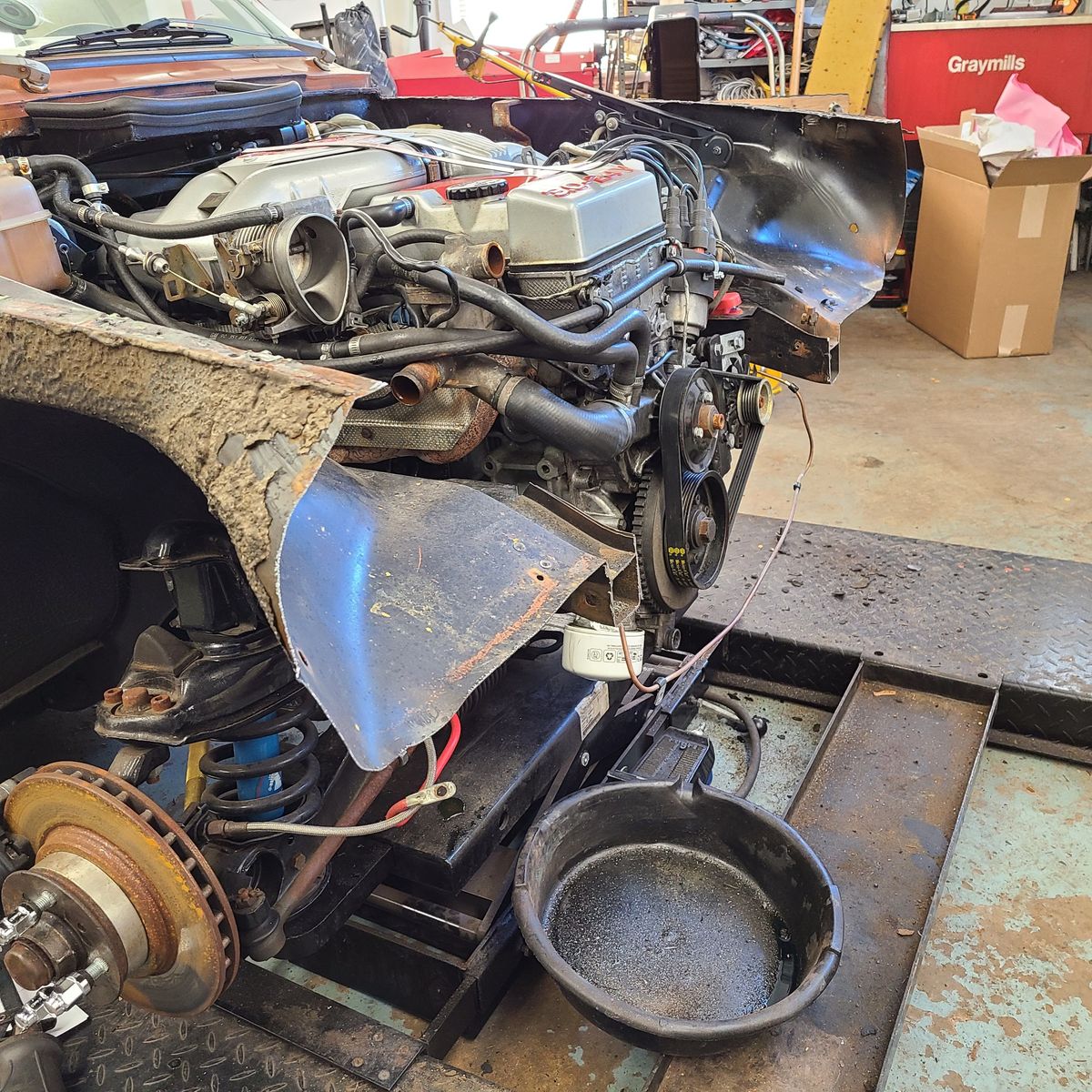

I made the first cut on the wagon near where it would have been for an early bumper nose. This allowed for a more accurate final cut.

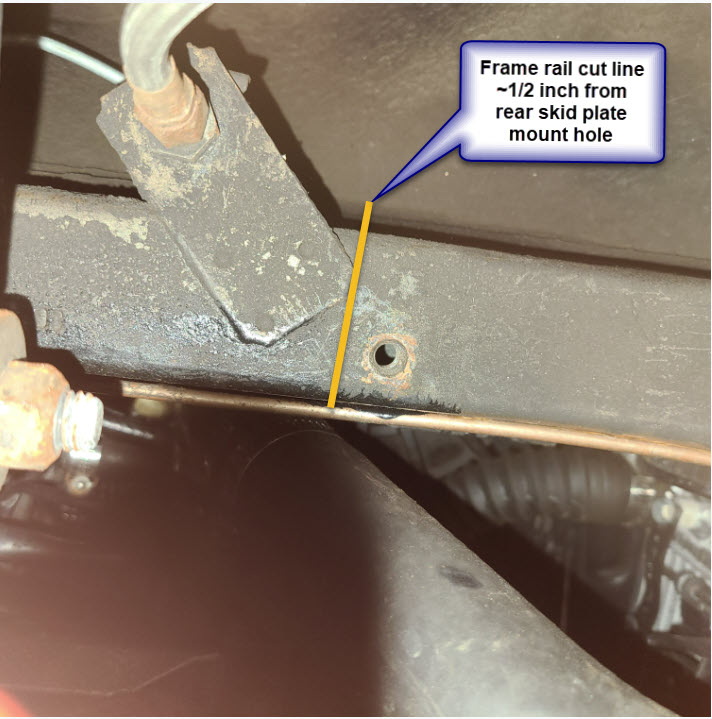

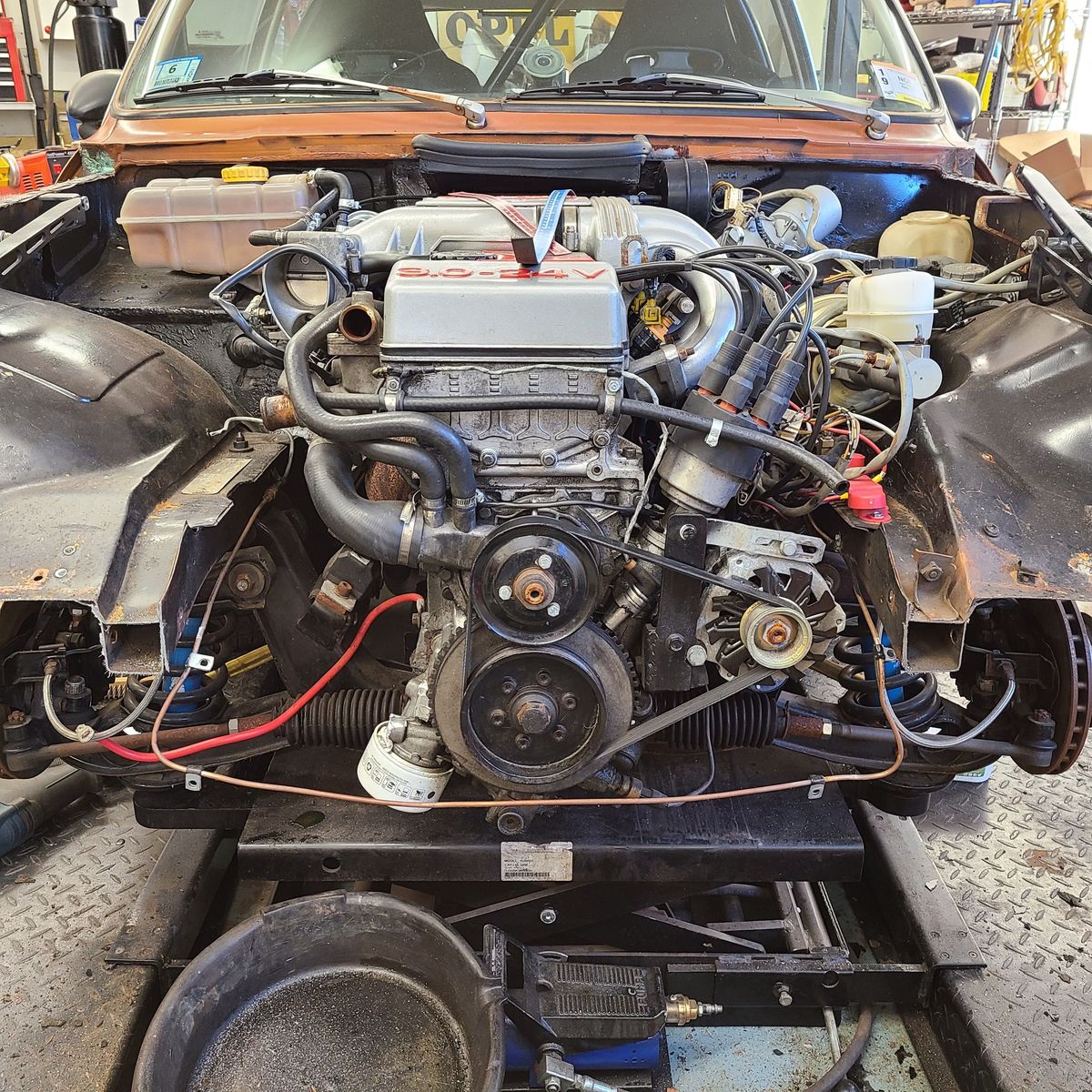

The final cut was made on both sides, roughly 1/2 inch back from the rear skid plate mounting hole

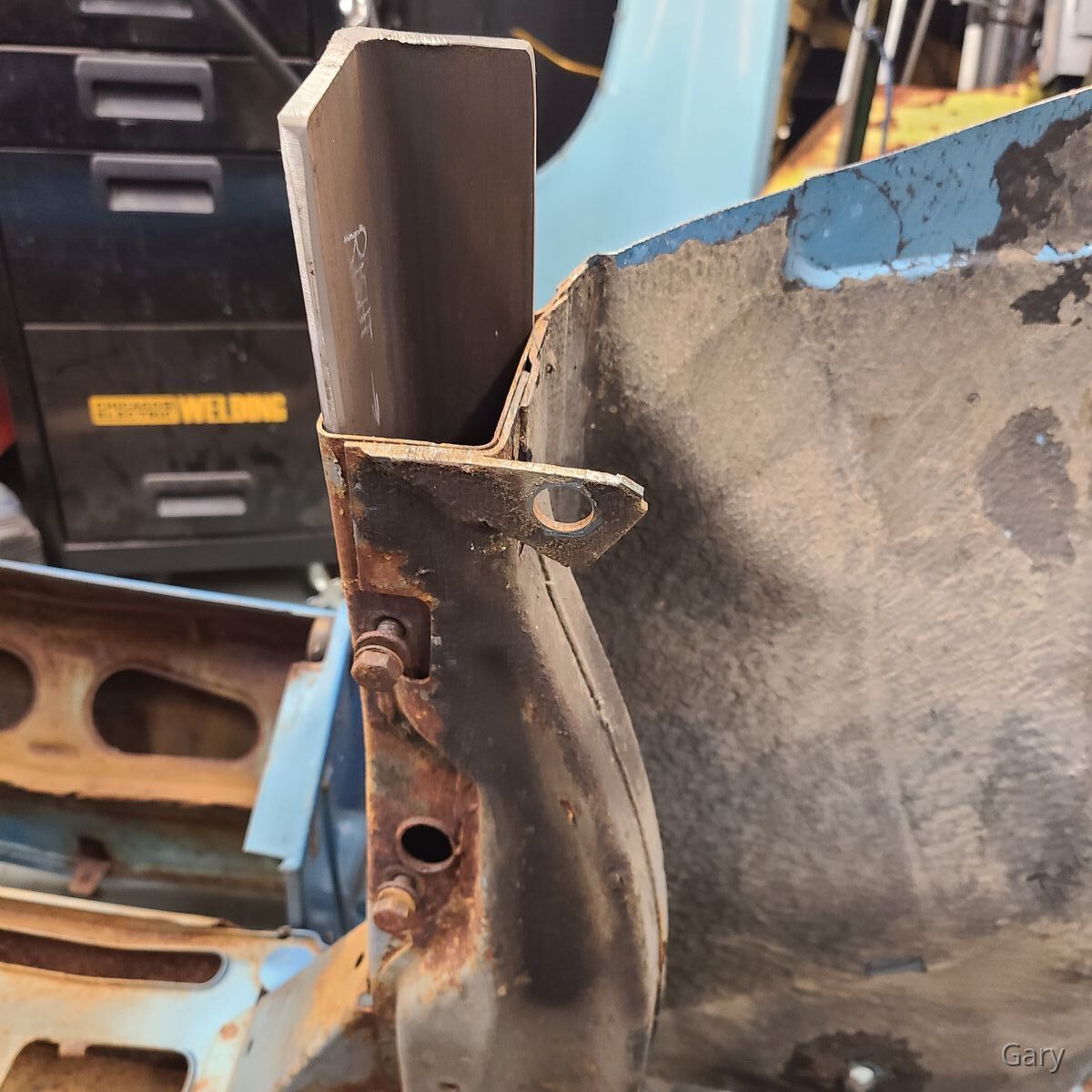

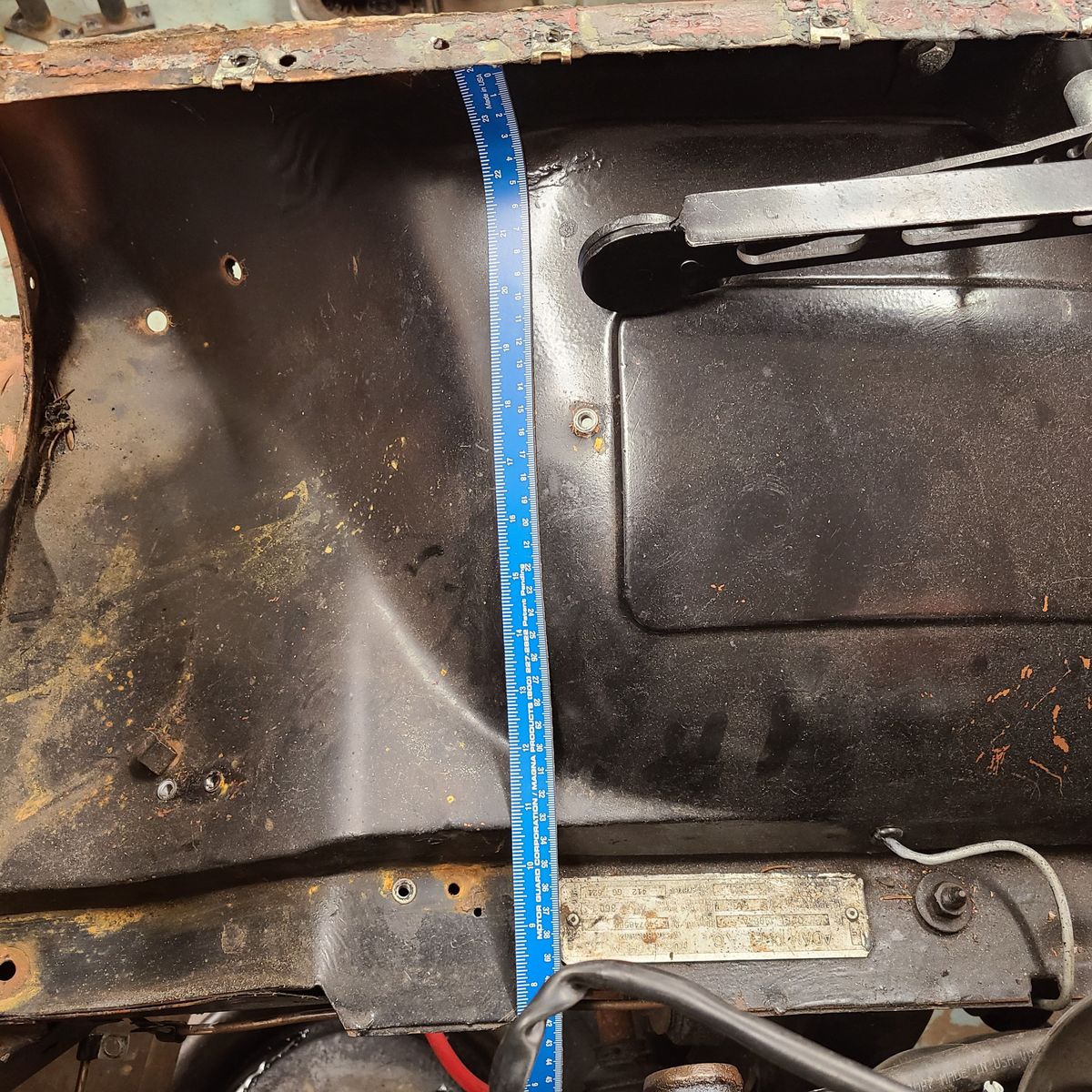

Passenger side cut line.





I used my engine hoist to support the nose piece for the initial alignment.



Next up, do a rough alignment and then check with the fenders.

Read More

I've been tempted to put a Manta nose on my 24v wagon. (why not? It's far from stock!)

I have most of the parts and the planning has begun.

The first issue found was the nose is from a big bumper Manta and the bumper supports are blended into the frame rails vs the '72 bumpers going straight into the frame rails.



This means the rails will need to be cut further back near the brake line brackets and aligning and blending the old and new fender wells will be more difficult. The driver's side well was modified to accept the larger booster and master cylinder. Once the Ascona nose and fenders are removed, the Manta fenders will be bolted on which will set the nose placement and hood gaps before welding the rails.

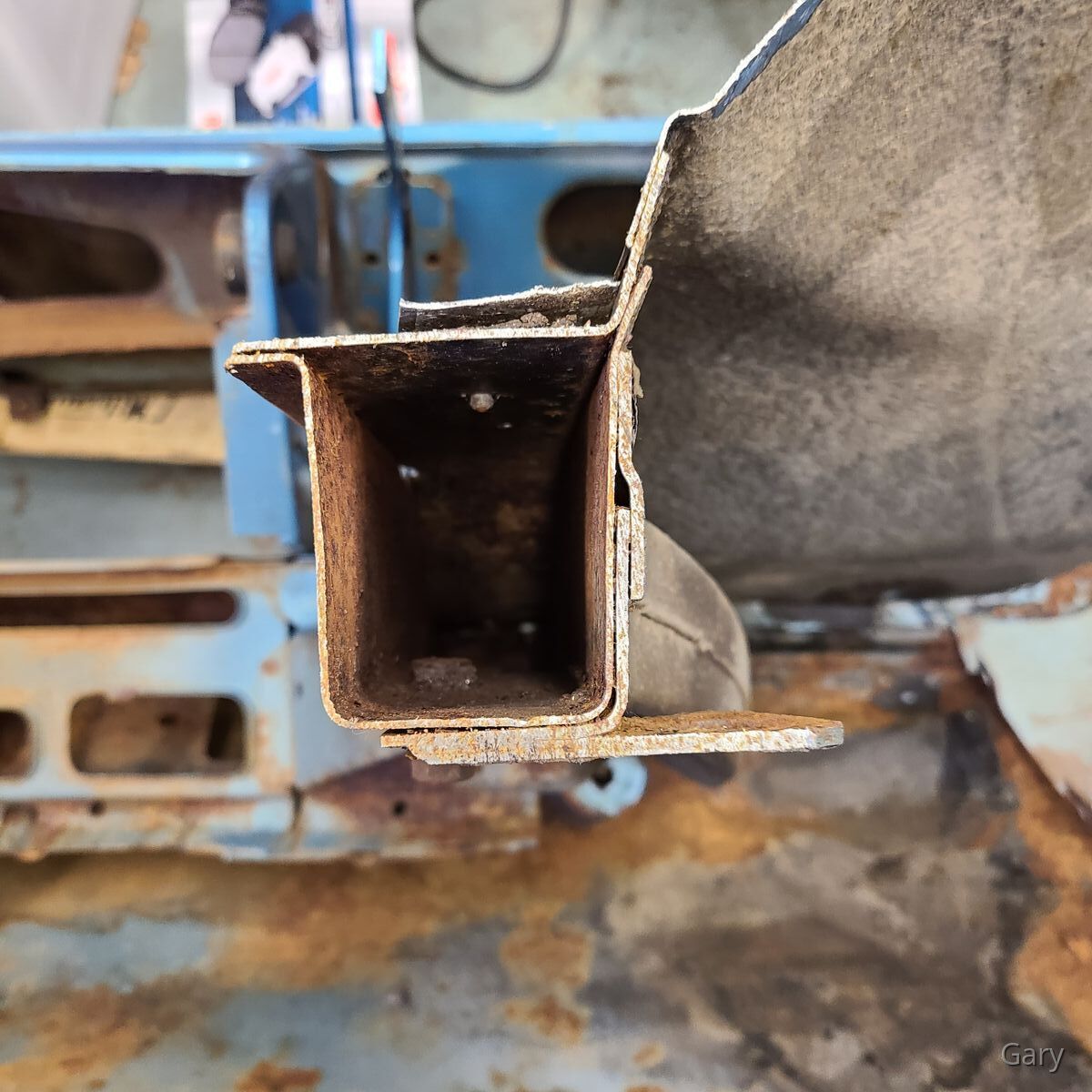

The main rail opening is just about the size of 2 1/2" x 2" angle iron. I ground down the edges and now have a sleeve inserted into the opening which will support and align the nose during fitment.



A wackadoodle idea that may be tried is to use a front panel piece sacrificed…

Read More

The joys of doing custom work. I'm changing out the gear ratio in my 24v wagon from 3.73 to 3.08. With all the power it now has, first gear was useless and I wanted to drop the the highway speed RPM's.

The rear end is a Dana 30 from a Volvo.

Dana 30 parts are pretty common and I ordered a gear set and bearing kit. The kit said "Fits Volvo."

Well the O.D. on the inner pinion bearing was too small so I ordered it's Volvo replacement. Now the I.D. of the new bearing was too big and it was loose on the new pinion shaft.

After a bit of searching on the Timken site, I came up with one that had the right dimensions and was listed as a pinion bearing.

The new bearing and race arrived and the I.D and O.D. are fine. But a new issue popped up... The pinion depth is set by adding or subtracting shims from behind the race which means the race must be removed several times as the shims are replaced. I had made a "set up" race that can be easily removed by grinding down the O.D. of the original race.…

Read More

This article will document the installation of Electric Power Assisted Steering (EPAS) into my 1972 Opel Ascona wagon.

The EPAS:

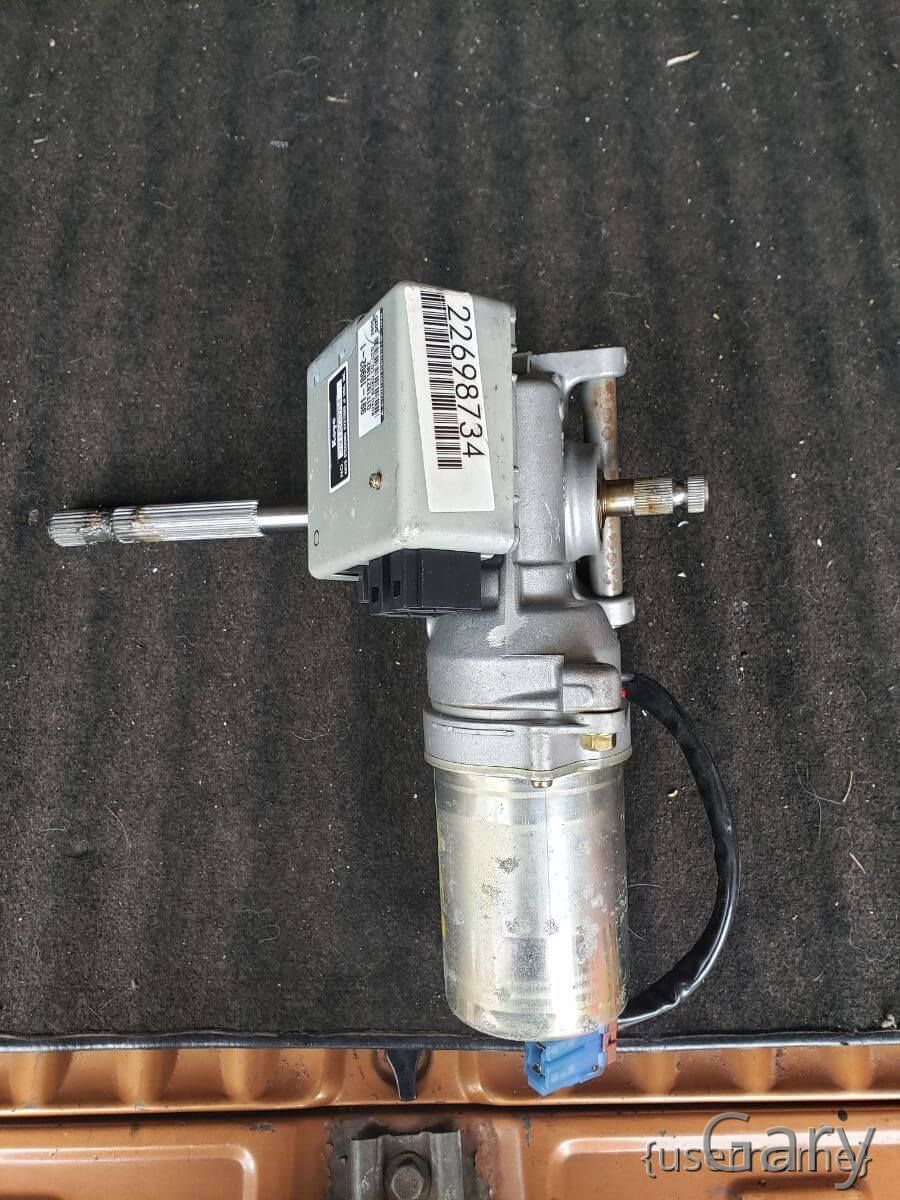

I purchased an EPAS from a 2007 Saturn Vue for a local yard for $50.

This unit requires an input from a sensor on the wheel to determine the amount of assist needed. There are several aftermarket controllers available to workaround the speed sensor. I ordered one on eBay from bruno_steering .

epowersteering sells complete kits and components for this conversion. Their accessories page include couplers and other components.

Connecting the EPS unit to the Opel steering column

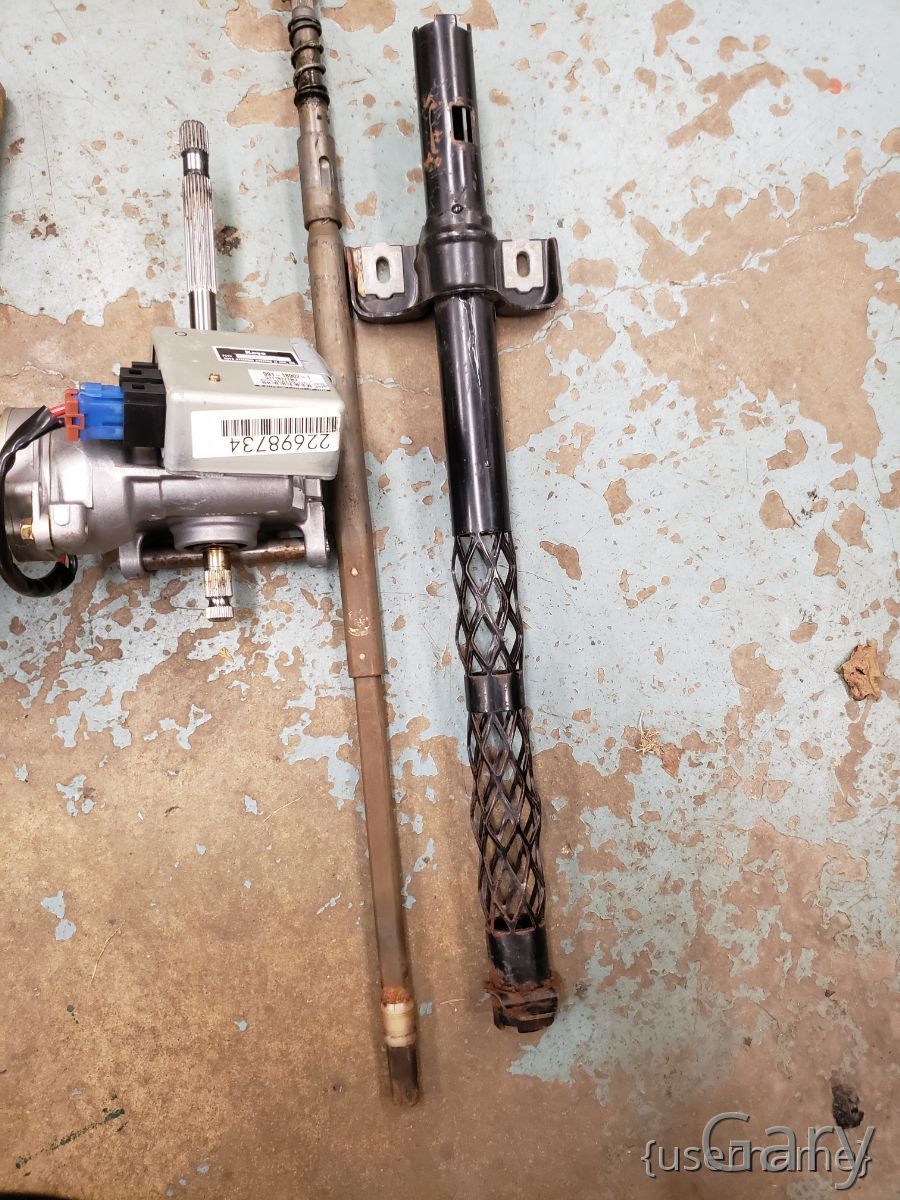

Here is the Saturn EPS next to the Opel steering column. The splines on the EPS are 3/4-36 on the steering wheel side and 16.5mm-36 on the rack side.

Wheel side connection: I will be going back to the yard and pick up the upper column to use those components for connecting the wheel side. That will give me more flexibility for this mod.

Rack side connection: An epowersteering

…

Read More

I picked up a rear end from a 1990 Volvo 240 with a 3.73 ratio and will be putting it in my 24 valve Ascona wagon.

I drilled the axles to a 4x100 pattern today (5x108 is stock) and a G80 locker carrier will be here tomorrow.



As of now, I'm leaning toward using the Opel spring buckets with adjustable arms and a torque arm going up to the Opel center joint mount. This will allow the Opel shock mounts and panhard bar mounts to be used.

Another option was sent to me by dsmith which needs more looking into. In that GT install, the Opel springs were mounted on the Volvo trailing arms and the arms matched up to the Opel front mounts. Two links from the axle to the training arm stabilized the axle. Shock and panhard mounts were relocated.

The brake system on the rear end needs replacing. The Volvo e-brake uses brake shoes on the inside of the rotors and both were in real rough shape. Rock Auto and Advanced auto will have all the Volvo brake parts here by Thursday.

I installed the Eaton G-80 locker…

Read More

Article by Otto Bartsch

Simplest installation of electronically triggered ignition in a GT is to purchase and use Pertronix/Hot-Spark trigger and stock coil. Here's how:

1. Remove cap, rotor, points and condenser with green wire from distributor and disconnect green "condenser/points" wire from coil. Leave everything else connected as-is.
2. Install Pertronix/Hot-Spark trigger amp module where points were, do not tighten mounting screws yet.
3. Run red and black module wires out "points wire" hole in side of distributor and install grommet in "points wire" hole, leaving a bit of slack on both wires inside of distributor.
4. Push black plastic magnet unit onto distributor shaft and seat over points cam.
5. Adjust trigger amp module to magnet unit clearance using clear plastic gauge that is provided and tighten trigger module screws.
6. Replace rotor and cap . . . you're now done with the distributor.
7. Connect black Pertronix/Hot-Spark wire to coil contact from which you removed the green…
